Features:
Precision Motion Control: Utilizes synchronous belt or ball screw drive, offering high repeat positioning accuracy to meet the requirements of high-precision assembly, inspection, and other demanding applications.
High-Rigidity Structure: Constructed with an aluminum profile frame and dual guide rail design, capable of adapting to heavy-load working conditions.
Multi-Axis Coordinated Drive: Independent control of XYZ three axes supports high-speed coordinated movement, suitable for complex trajectory movements.
Modular Design: Available in open or closed structures, enabling quick integration into automated production lines and reducing installation time.
Application Scenarios:
3C Electronics: PCB handling, chip mounting, optical inspection;
Automotive Manufacturing: Component welding, adhesive dispensing, assembly line loading and unloading;
Logistics & Warehousing: Intelligent sorting, palletizing, AGV docking;
Medical Devices: High-precision surgical instrument positioning, sample analysis equipment.

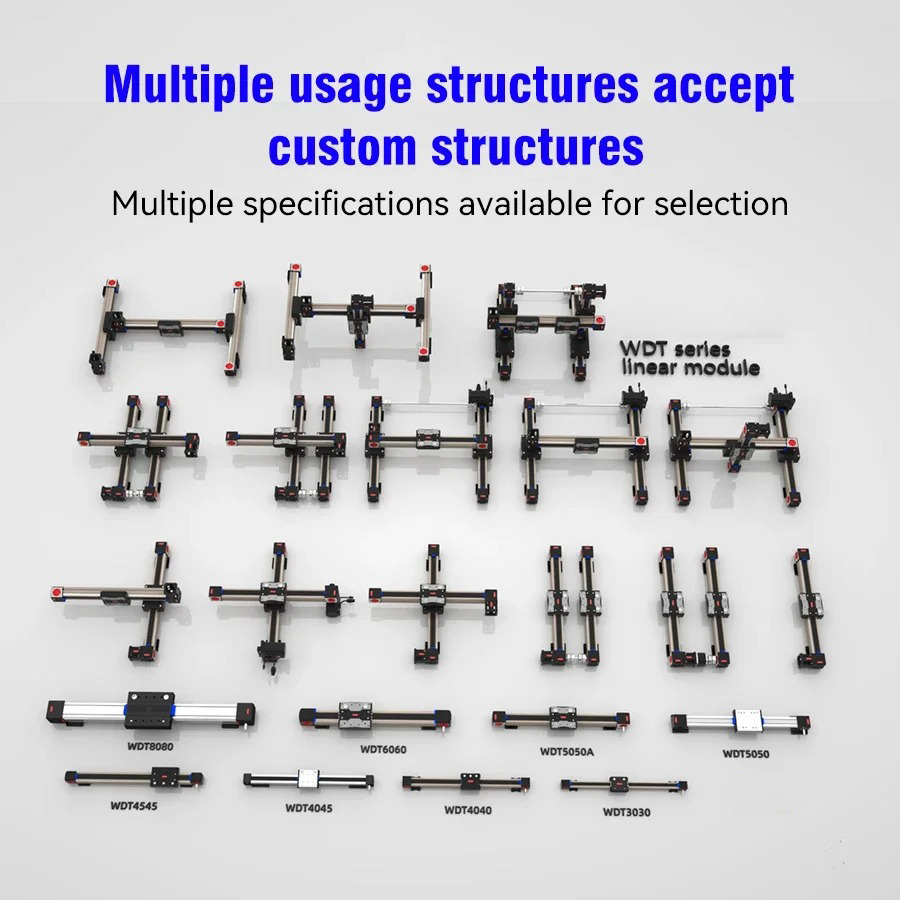

| Model | length | running speed | repeatability | horizontal load | vertical load |
| WDT3030 | ≤4m | 0-1500mm/s | ±0.05mm | ≤3KG | ≤1KG |
| WDT4040 | ≤4m | 0-2000mm/s | ±0.05mm | ≤6KG | ≤3KG |
| WDT4045 | ≤4m | 0-2000mm/s | ±0.05mm | ≤8KG | ≤3KG |
| WDT4545 | ≤4m | 0-2000mm/s | ±0.05mm | ≤12KG | ≤5KG |
| WDT4545A | ≤4m | 0-2000mm/s | ±0.05mm | ≤12KG | ≤5KG |
| WDT5050 | ≤4m | 0-2000mm/s | ±0.05mm | ≤20KG | ≤8KG |
| WDT5050A | ≤4m | 0-2000mm/s | ±0.05mm | ≤20KG | ≤8KG |
| WDT6060 | ≤6m | 0-2500mm/s | ±0.05mm | ≤35KG | ≤12KG |
| WDT8080 | ≤6m | 0-3000mm/s | ±0.05mm | ≤60KG | ≤20KG |

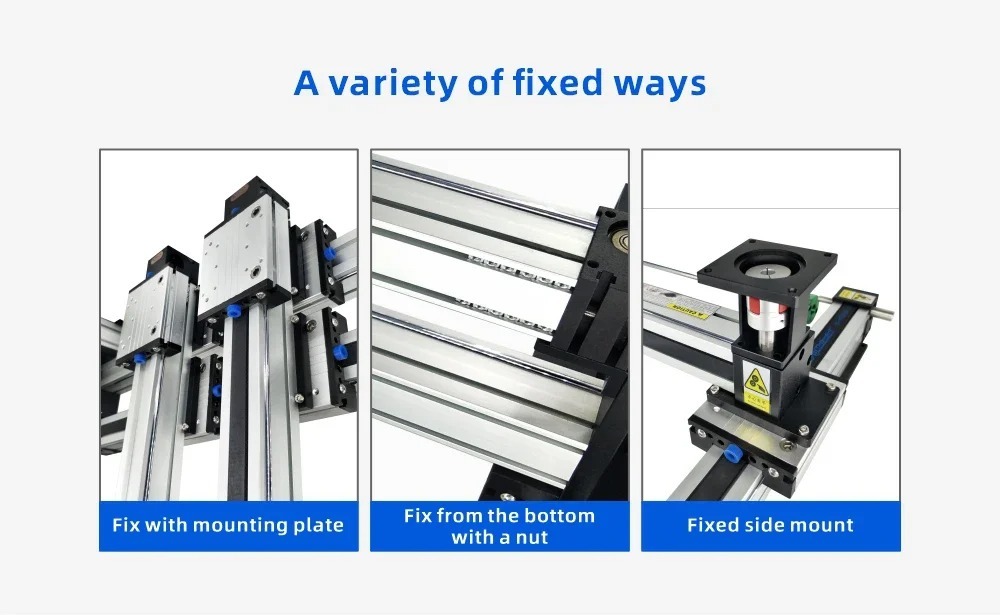

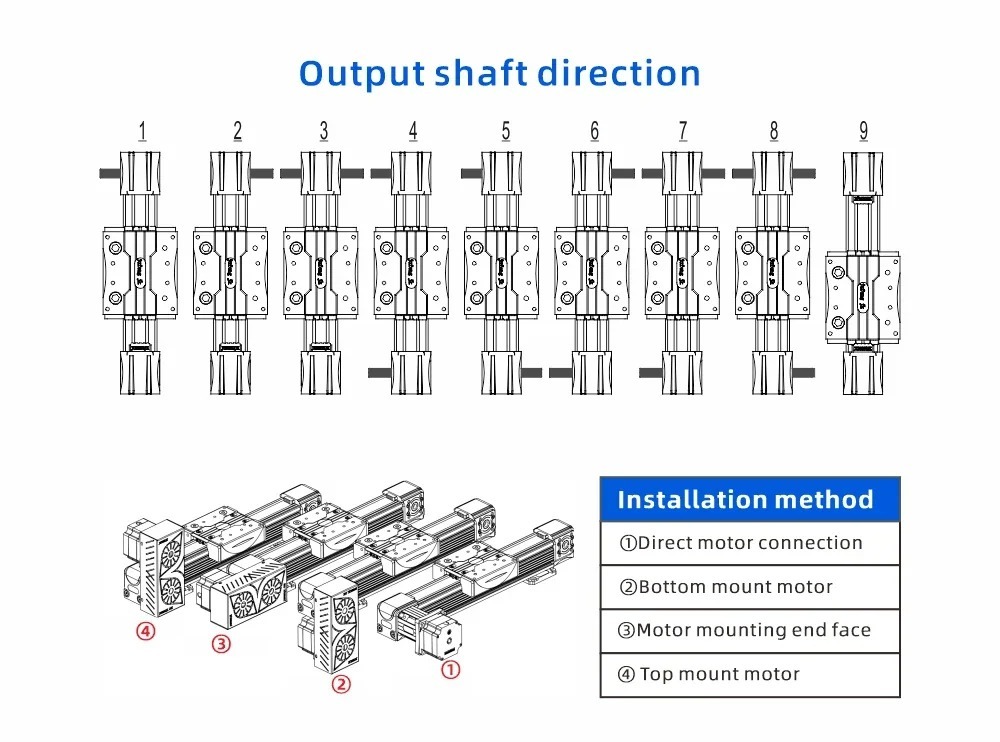

Installation Instructions
|
|

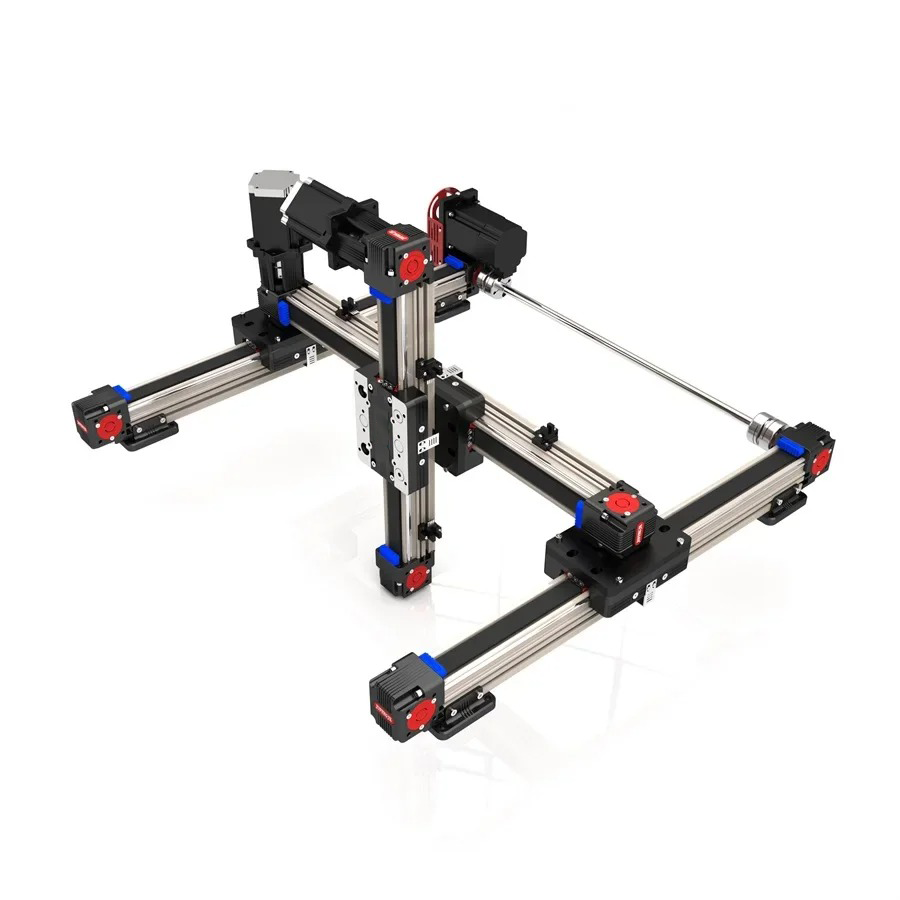

Customized stroke 50-4000mm xyz 3-axis CNC gantry robot linear module Images
|
