High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated

Name: High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated
Brand: SXEGL
Price: 4 USD

Buy cheap High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated product

Brand Name : SXEGL

Model Number : KK60

Certification : CE/FCC/EPA/ROSH/ISO

Place of Origin : China

MOQ : 1

Packaging Details : Carton

Delivery Time : Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms : Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability : All products have passed CE certification and comply with EU RoHS environmental standards

Price : $4-$999

Name : Single Axis Robot

Material : Bearing Steel

Length : 100-1680mm

Service : OEM Services

Structure : CNC Components

Core Components : Bearing, Motor

Application : Automatic Equipment High Speed Transfer Device

Contact Now

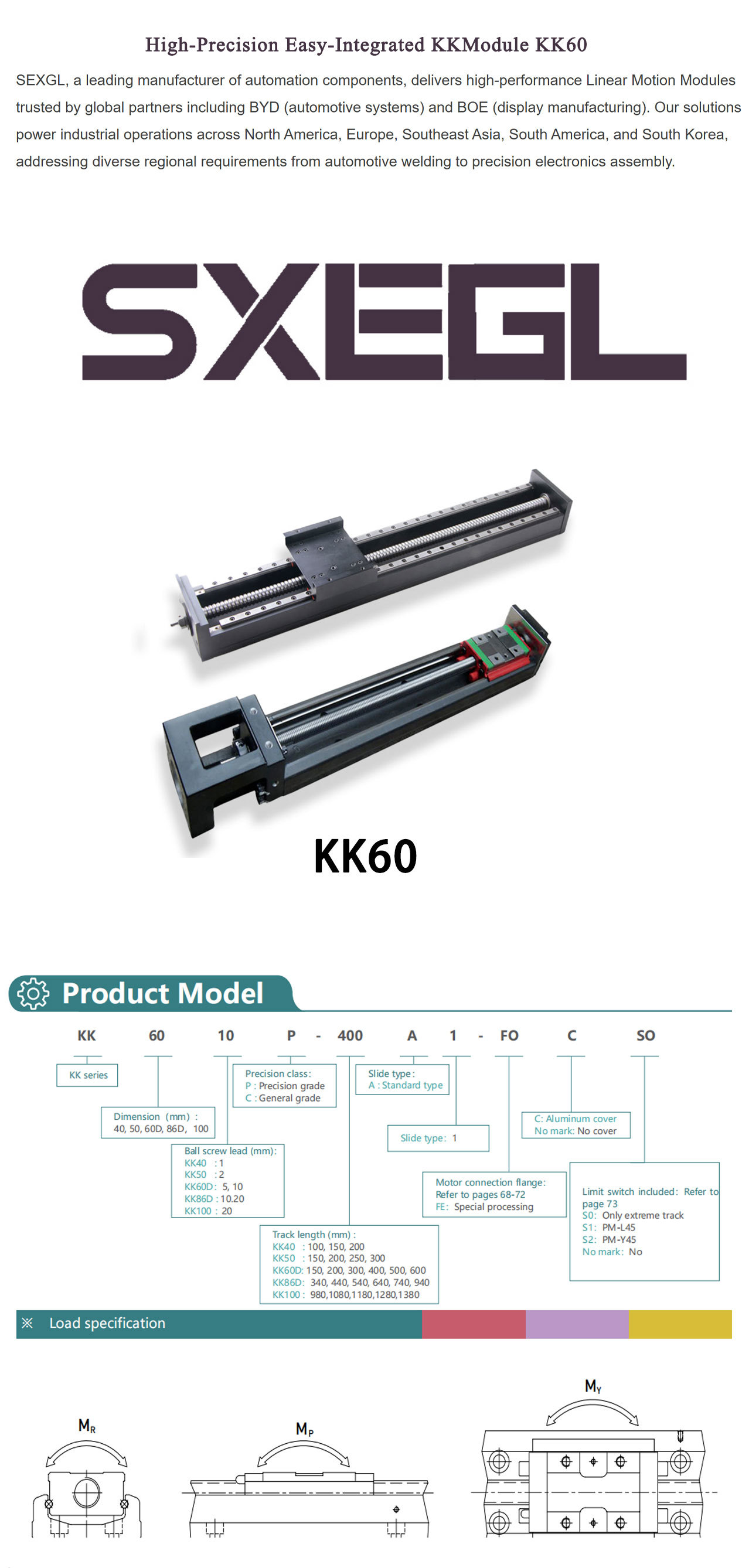

High-Precision Easy-Integrated KK Module KK60

SEXGL, a leading manufacturer of automation components, delivers high-performance Linear Motion Modules trusted by global partners including BYD (automotive systems) and BOE (display manufacturing). Our solutions power industrial operations across North America, Europe, Southeast Asia, South America, and South Korea, addressing diverse regional requirements from automotive welding to precision electronics assembly.A precision linear slide table module designed for industrial automation, featuring high rigidity, stable operation, and precise positioning. It enables rapid linear reciprocating motion and accurate positioning, widely used in applications such as CNC machine tools, robot arms, and automated inspection equipment.

Core Advantages

High-Precision Positioning: Utilizes ground ball screw transmission paired with precision linear guide rails for accurate motion control.
Modular & Easy Integration: Features a standardized structural design that directly adapts to stepper motors, servo motors, and various sensors. Supports single-axis independent operation or multi-axis combination into right-angle coordinate systems, significantly streamlining equipment development cycles.
Low Maintenance & Long Lifespan: Equipped with optional fully enclosed dust covers and an automatic lubrication system, effectively reducing dust intrusion and component wear to minimize downtime costs.
Silent & Energy-Efficient Design: Guide rails and sliders adopt a silent roller structure, paired with low-energy motors, achieving 30% energy savings compared to traditional transmission solutions.

Model		Ball screw				Linear guideway
		Screw diameter (mm)	Lead (mm)	Basic dynamic- rated load(N)	Basic static- rated load (N)	Basic dynamic- rated load (N)		Basic static-rated load(N)		Permissible static torque
										Pitch M,(N-m)				Yaw M₂ (N-m)				Roll Mg(N-m)
						Slide A Slide s		Slide A Slide s		Slide A1	Slide A2	Slide S1	Slide S2	Slide A1	Slide A2	Slide S1	Slide S2	Slide A1	Slide A2	Slide S1	Slide S2
KK6005	Precision General	12	5	3744	6243	13230	7173	21462	11574	152	760	72	367	152	760	72	367	419	838	241	482
				3377	5625

High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated

Model	Track length		Positioning reproducibility			Positioning accuracy			Walking parallelism			Maximum starting torque(N-cm)
			Precision	General		Precision		General	Precision	General		Precision	General
KK60	150		±0.003	±0.01		0.020		-	0.010	-		15	7
	200
	300
	400
	500		±0.003	±0.01		0.025		-	0.015	-		15	7
	600
Model		Ball screw lead (mm)			Track length L2(mm)		Speed(mm/sec)
							Precision grade				General grade
KK60		05			150		550				390
					200		550				390
					300		550				390
					400		550				390
					500		550				390
					600		340				340
		10			150		1100				790
					200		1100				790
					300		1100				790
					400		1100				790
					500		1100				790
					600		670				670

High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated

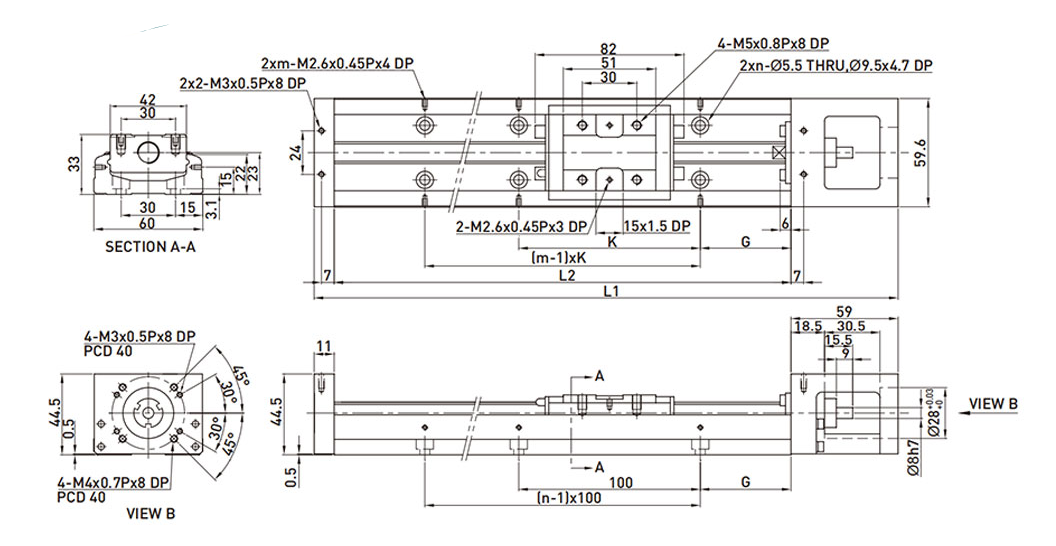

										Unit:mm
Track length L2(mm)	Overall length L1(mm)	Max stroke(mm)		G(mm)	k(mm)	N	M	Weight (kg)
		A1 slide	A2 slide					A1 slide	A2 slide
150	220	60		25	100	2	2	1.5
200	270	110		50	100	2	2	1.8
300	370	210	135	50	200	3	2	2.4	2.7
400	470	310	235	50	100	4	4	3	3.3
500	570	410	335	50	200	5	3	3.6	3.9
600	670	510	435	50	100	6	6	4.2	4.6

High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated
