High Rigidity Rolled Ball Screw 10mm - 160mm High Precision Lead Screw Core Transmission Components

Name: High Rigidity Rolled Ball Screw 10mm 160mm High Precision Lead Screw Core Transmission Components
Brand: SXEGL
Price: 7 USD

Buy cheap High Rigidity Rolled Ball Screw 10mm - 160mm High Precision Lead Screw Core Transmission Components product

Brand Name : SXEGL

Model Number : SFU

Certification : CE/FCC/EPA/ROSH/ISO

Place of Origin : China

MOQ : 1

Packaging Details : Carton

Delivery Time : Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms : Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability : All products have passed CE certification and comply with EU RoHS environmental standards

Price : $7-$50

Name : Rolled Ball Screw

material : S55C,SCM420H

Nut type : Single Nut$ Double Nut

Application : 3D Printer/CNC Machine

core component : Engine, Bearing, motor, Pressure vessel

manufacturing process : Rolled Thread

Length : 10-160mm

Contact Now

High Rigidity High Precision Ball Screws Core Transmission Components

SEXGL ground ball screws deliver unparalleled accuracy and durability in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.As a core component of precision transmission, ball screws are deeply integrated into key sectors such as high-end equipment manufacturing, industrial automation, and precision measurement, leveraging their technical advantages of high precision, high efficiency, and high reliability.

High Rigidity Rolled Ball Screw 10mm - 160mm High Precision Lead Screw Core Transmission Components

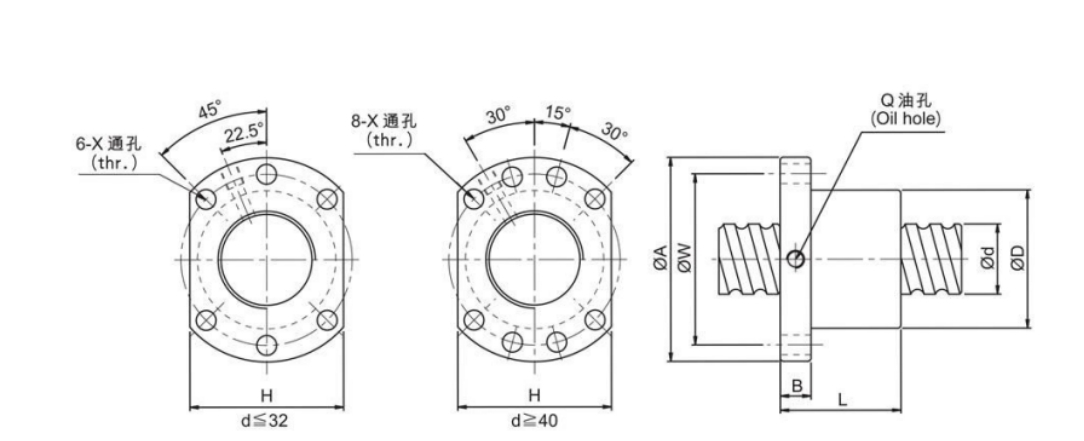

Model no.	d	Lead	Bead diameter	Nut size										Dynamic Rating Load Ca	Static Rated Load Coa
Model no.	d	Lead	Bead diameter	D	A	E	B	L	W	H	X	Q	n	Dynamic Rating Load Ca	Static Rated Load Coa
SFYR1616-3.6	16	16	2.778	32	53	10.1	10	45	42	34	4.5	M6x1	1.8×2	1073	2551
SFYR2020-3.6	20	20	3.175	39	62	13	10	52	50	41	5.5	M6x1	1.8×2	1387	3515
SFYR2040-1.6	40	40	3.175	39	62	13	10	48	50	41	5.5	M6×1	0.8×2	653	1597
SFYR2550-1.6	50	50	3.969	47	74	15	12	58	60	49	6.6	M6X1	0.8×2	976	2495
SFYR2525-3.6	25	25	3.969	47	74	15	12	64	60	49	6.6	M6x1	1.8×2	2074	5494
SFYR3232-3.6	32	32	4.762	58	92	17	12	78	74	60	9	M6x1	1.8×2	3021	8690
SFYR4040-3.6	40	40	6.35	73	114	19.5	15	99	93	75	11	M6×1	1.8×2	4831	14062
SFYR5050-3.6	50	50	7.938	90	135	21.5	20	117	112	92	14	M6x1	1.8×2	7220	21974

High Rigidity Rolled Ball Screw 10mm - 160mm High Precision Lead Screw Core Transmission Components
