Efficient High Precision Ball Screw 10mm - 160mm Ball Screw For CNC

Name: Efficient High Precision Ball Screw 10mm 160mm Ball Screw For CNC
Brand: SXEGL
Price: 7 USD

Buy cheap Efficient High Precision Ball Screw 10mm - 160mm Ball Screw For CNC product

Brand Name : SXEGL

Model Number : SCI

Certification : CE/FCC/EPA/ROSH/ISO

Place of Origin : China

MOQ : 1

Packaging Details : Carton

Delivery Time : Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms : Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability : All products have passed CE certification and comply with EU RoHS environmental standards

Price : $7-$50

Name : High Precision Ball Screw

material : S55C,SCM420H

Nut type : Single Nut$ Double Nut

Application : 3D Printer/CNC Machine

core component : Engine, Bearing, motor, Pressure vessel

manufacturing process : Rolled Thread

Length : 10-160mm

Contact Now

Efficient High Precision Ball Screw For Automation CNC Industrial Robots

SEXGL ground ball screws deliver unparalleled accuracy and durability in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.This ball screw is specifically engineered for high-precision linear motion systems, serving as a core transmission component in automation equipment, CNC machines, and industrial robots. It achieves rotational-to-linear motion conversion through rolling friction, combining high operational efficiency with minimal wear. This makes it ideal for applications requiring precise positioning as well as high-speed, heavy-load scenarios. dynamic performance.

Characteristics

Superior Precision: ±5 microns positioning error meets the demands of precision manufacturing in semiconductor and optical industries.
Extended Durability: Carburized alloy steel material with multiple seals enhances service life by over 50% compared to traditional ball screws.
Intelligent Adaptability: Supports customization of C3 to C7 precision grades, available with dust-proof (IP65) or corrosion-resistant coating versions.

Theory
Ball screws operate via recirculating ball bearings that roll between the screw shaft and nut. As the screw rotates, the balls circulate through helical grooves, transferring motion linearly. This rolling-contact mechanism replaces sliding friction with near-frictionless motion, reducing heat generation and power consumption. Preload adjustments eliminate axial play, ensuring zero backlash and enhanced positional accuracy.

Efficient High Precision Ball Screw 10mm - 160mm Ball Screw For CNC

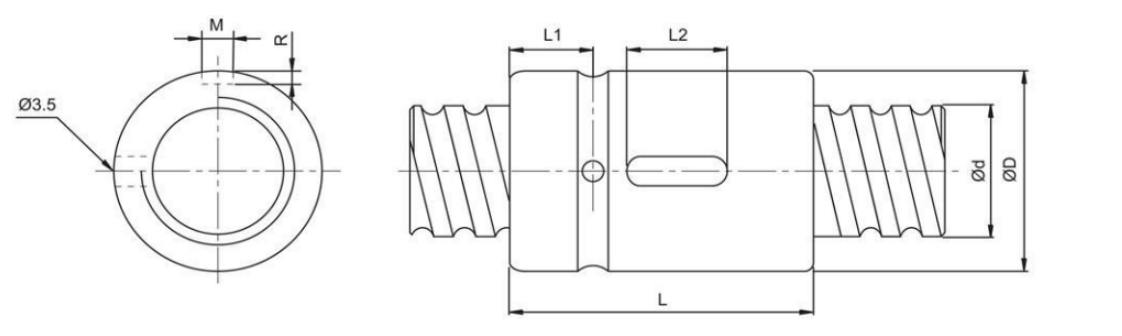

unit:mm
	Model no.	d	Lead	Bead diameter	(Nut size)							Dynamic Rating Load( Ca)	Static Rating Load (Coa)	rigidity kgf/ μm
	Model no.	d	Lead	Bead diameter	D	L	L1	L2	M	R	n	Dynamic Rating Load( Ca)	Static Rating Load (Coa)	rigidity kgf/ μm
	SCI01604-4	16	4	2.381	30	40	9	15	3	1.5	1×4	973	2406	32
☆	SCI01605-4	16	5	3.175	30	45	9	20	5	3	1×4	1380	3052	33
☆	SCI02004-4	20	4	2.381	34	40	9	15	3	1.5	1×4	1066	2987	37
☆	SCI02005-4	20	5	3.175	34	45	9	20	5	3	1×4	1551	3875	39
	SCI02504-4	25	4	2.381	40	40	9	15	3	1.5	1×4	1180	3795	73
☆	SCI02505-4		5	3.175	40	45	9	20	5	3	1×4	1724	4904	45
	SCI02510-4		10	4.762	46	85	13	30	5	3	1×4	2954	7295	51
☆	SCI03205-4	32	5	3.175	46	45	9	20	5	3	1×4	1922	6343	52
	SCI03210-4	32	10	6.35	54	85	13	30	5	3	1×4	4805	12208	62
	SCI04005-4	40	5	3.175	56	45	9	20	5	3	1×4	2110	7988	59
	SCI04010-4	40	10	6.35	62	85	13	30	5	3	1×4	5399	15500	72
	SCI05010-4	50	10	6.35	72	85	13	30	5	3	1×4	6004	19614	83
	SCI06310-4	63	10	6.35	85	85	13	30	6	3.5	1×4	6719	25358	95
	SC108010-4	80	10	6.35	105	85	13	30	8	4.5	1×4	7346	31953	109
Note: Those marked with ☆ can produce left-hand thread.
