Heavy Load Rolled Ball Screw Efficient 10mm Ball Screw Food Grade Lubrication

SXEGL Intelligent Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Heavy Load Rolled Ball Screw Efficient 10mm Ball Screw Food Grade Lubrication

Brand Name : SXEGL

Model Number : SFI

Certification : CE/FCC/EPA/ROSH/ISO

Place of Origin : China

MOQ : 1

Packaging Details : Carton

Delivery Time : Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms : Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability : All products have passed CE certification and comply with EU RoHS environmental standards

Price : $7-$50

Name : Rolled Ball Screw

material : S55C,SCM420H

Nut type : Single Nut$ Double Nut

Application : 3D Printer/CNC Machine

core component : Engine, Bearing, motor, Pressure vessel

manufacturing process : Rolled Thread

Length : 10-160mm

Contact Now

Food Grade Lubrication For CNC Ball Screw Heavy Load Efficient Transmission

SEXGL ground ball screws deliver unparalleled accuracy and durability in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.In an era where CNC machines demand increasingly stringent precision, speed, and reliability, our ball screws serve as the critical link between precision control and high-efficiency production through material innovation, structural optimization, and process enhancement. Whether for micron-level precision grinding or continuous high-speed, heavy-load machining, they ensure stable performance of the machine tool's motion system—empowering our customers to overcome bottlenecks in machining accuracy and productivity.

 Characteristics

Micron-level positioning accuracy is achieved through precision grinding processes and high-precision lead control, ensuring positioning errors within ±5 microns (optional C3 precision class per ISO 3408). The unique ball recirculation system design converts sliding friction to rolling friction for efficient power transmission, capable of handling heavy loads while maintaining high-speed performance. Optional configurations include corrosion-resistant coatings (for wet or corrosive environments) and food-grade lubrication solutions (suitable for medical/food processing equipment), making it adaptable to diverse industrial applications.

Theory
Ball screws operate via recirculating ball bearings that roll between the screw shaft and nut. As the screw rotates, the balls circulate through helical grooves, transferring motion linearly. This rolling-contact mechanism replaces sliding friction with near-frictionless motion, reducing heat generation and power consumption. Preload adjustments eliminate axial play, ensuring zero backlash and enhanced positional accuracy.

Heavy Load Rolled Ball Screw Efficient 10mm Ball Screw Food Grade Lubrication


Model no.
D Lead
Bead diameter
(Nut size) Dynamic Rating Load(
Ca)
Static Rating
Load
(Coa)

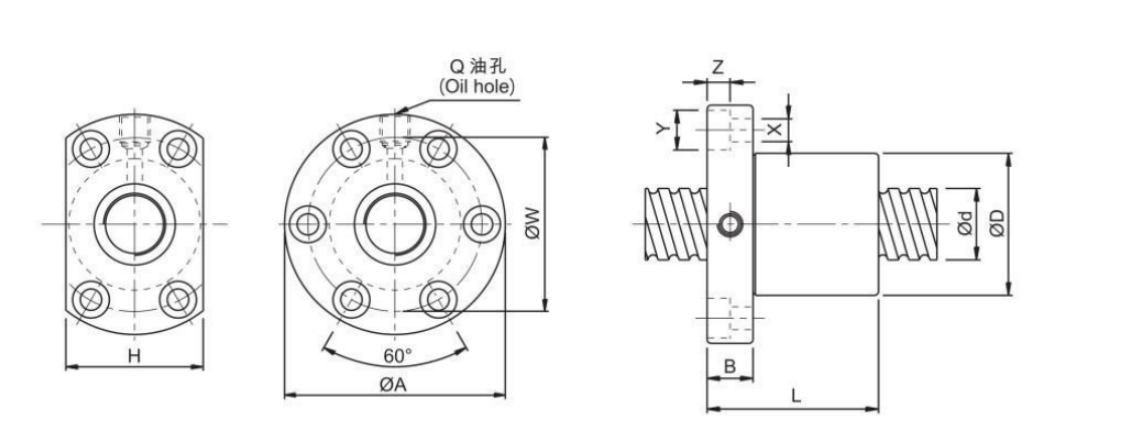

D A B L W H X Y Z Q n
SFIR1605-4 16  5  3.175  30  49  10  50  39  34  4.5  8  4.5  M6×1 1×4 888  1525
SFIR1610-3 10  3.175  34  58  10  57  45  34  5.5  9.5  5.5  M6×1 1×3 716  1232
SFIR2005-4 20  5  3.175  34  57  11  51  45  40  5.5  9.5  5.5  M6×1 1×4 999  1994
SFIR2505-4 25  5  3.175  40  63  11  51  51  46  5.5  9.5  5.  M8×1 1×4 1119  2581
SFIR2510-4 10  4.762  46  72  12  85  58  52  6.5  11  6.5  M8×1 1×4 1903  3695
SFIR3205-4 32  5  3.175  46  72  12  52  58  52  6.5  11  6.5  M8×1 1×4 1264  3402
SFIR3210-4 10  6.35  54  88  15  90  70  62  9  14  8.5  M8×1 1×4 3092  6101
SFIR4005-4 40  5  3.175  56  90  15  55  72  64  9  14  8.5  M8×1 1×4 1407  4341
SFIR4010-4 10  6.35  62  104  18  93  82  70  11  17.5  11  M8×1 1×4 3480  7779
SFIR5010-4 50  10  6.35  72  114  18  93  92  82  11  17.5  11  M8×1 1×4 3898  10325
SFIR6310-4 63  10  6.35  85  131  22  98  107  95  14  20  13  M8×1 1×4 4401  13611
SFIR8010-4 80  10  6.35  105  150  22  98  127  115  14  20  13  M8×1 1×4 4900  17366

Heavy Load Rolled Ball Screw Efficient 10mm Ball Screw Food Grade Lubrication

Heavy Load Rolled Ball Screw Efficient 10mm Ball Screw Food Grade Lubrication
