Precision Single Axis Robot 100mm - 1680mm Linear Motion Module KK86 CNC Retail Industries

Name: Precision Single Axis Robot 100mm 1680mm Linear Motion Module KK86 CNC Retail Industries
Brand: SXEGL
Price: 4 USD

Buy cheap Precision Single Axis Robot 100mm - 1680mm Linear Motion Module KK86 CNC Retail Industries product

Brand Name : SXEGL

Model Number : KK50

Certification : CE/FCC/EPA/ROSH/ISO

Place of Origin : China

MOQ : 1

Packaging Details : Carton

Delivery Time : Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms : Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability : All products have passed CE certification and comply with EU RoHS environmental standards

Price : $4-$999

Name : Single Axis Robot

Material : Bearing Steel

Length : 100-1680mm

Service : OEM Services

Structure : CNC Components

Core Components : Bearing, Motor

Application : Automatic Equipment High Speed Transfer Device

Contact Now

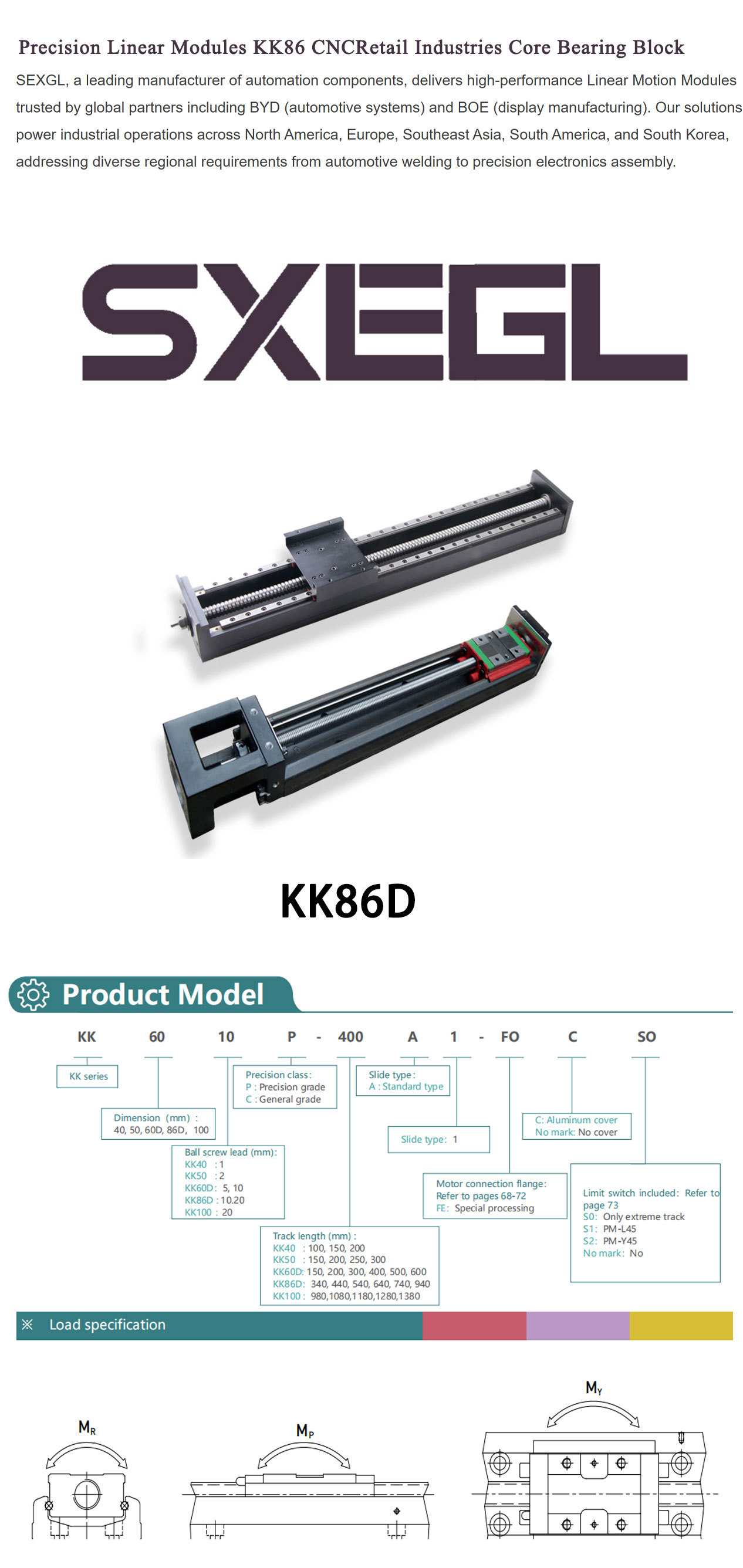

Precision Linear Modules KK86 CNC Retail Industries Core Bearing Block

SEXGL, a leading manufacturer of automation components, delivers high-performance Linear Motion Modules trusted by global partners including BYD (automotive systems) and BOE (display manufacturing). Our solutions power industrial operations across North America, Europe, Southeast Asia, South America, and South Korea, addressing diverse regional requirements from automotive welding to precision electronics assembly.A precision linear slide table module designed for industrial automation, featuring high rigidity, stable operation, and precise positioning. It enables rapid linear reciprocating motion and accurate positioning, widely used in applications such as CNC machine tools, robot arms, and automated inspection equipment.

Two specifications are available: ball screw type (suitable for high-precision, light-load applications) and belt-driven type (ideal for high-speed, long-stroke operations). It supports customizable stroke
lengths (50-2000mm) and multiple mounting options (horizontal/vertical/side-mount), ensuring flexible adaptation to diverse working conditions.

Centered on the core values of precision, reliability, and easy adaptability, the KK module enables industrial automation equipment to achieve efficient and precise linear transmission, making it an ideal choice for enhancing production line performance.

Precision Single Axis Robot 100mm - 1680mm Linear Motion Module KK86 CNC Retail Industries

Model		Ball screw				Linear guideway
		Screw diameter (mm)	Lead (mm)	Basic dynamic- rated load(N)	Basic static- rated load (N)	Basic dynamic- rated load (N)		Basic static-rated load(N)		Permissible static torque
										Pitch M,(N-m)				Yaw My(N-m)				Roll M(N-m)
						Slide A	Slide s	Slide A	Slides	Slide A1	Slide A2	Slide S1	Slide S2	Slide A1	Slide A2	Slide S1	Slide S2	Slide A1	Slide A2	Slide S1	Slide S2
KK8610	Precision General	15	10	7144	12642	31458	21051	50764	29475	622	3050	228	1309	622	3050	228	1309	1507	3014	847	1694
				6429	11387
KK8620	Precision General	15	20	4645	7655	31458	21051	50764	29475	622	3050	228	1309	622	3050	228	1309	1507	3014	847	1694
				4175	6889

Model	Track length	Positioning reproducibility		Positioning accuracy		Walking parallelism		Maximum starting torque(N-cm)
		Precision	General	Precision	General	Precision	General	Precision	General
KK86	340	±0.003	±0.01	0.025	-	0.015	-	15	10
	440
	540
	640
	740	±0.003	±0.01	0.030	-	0.020	-	17	10
	940	±0.003	±0.01	0.040	-	0.030	-	25	10

Precision Single Axis Robot 100mm - 1680mm Linear Motion Module KK86 CNC Retail Industries

Model	Ball screw lead (mm)	Track length L2(mm)	Speed(mm/sec)
Model	Ball screw lead (mm)	Track length L2(mm)	Precision grade	General grade
KK86	10	340	740	520
		440	740	520
		540	740	520
		640	740	520
		740	740	520
		940	610	430
	20	340	1480	1050
		440	1480	1050
		540	1480	1050
		640	1480	1050
		740	1480	1050
		940	1220	870

Precision Single Axis Robot 100mm - 1680mm Linear Motion Module KK86 CNC Retail Industries

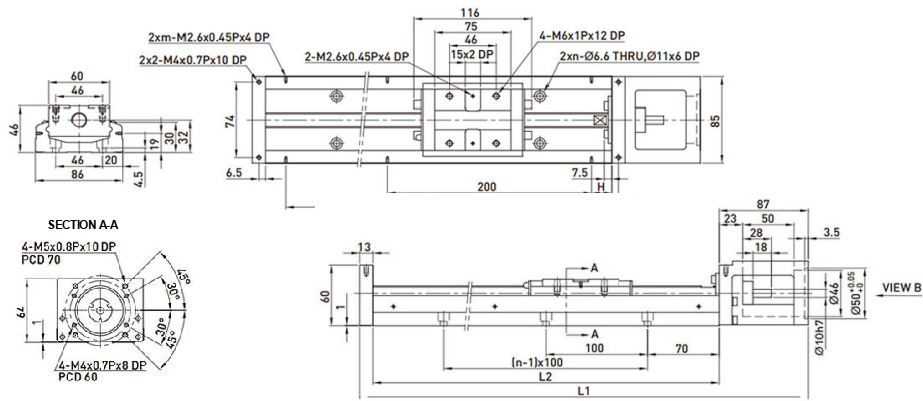

KK86D without cover

									Unit:mm
Track length L2(mm)	Overall length L1(mm)	Max stroke(mm)		H(mm)	N	M	Weight(kg)
Track length L2(mm)	Overall length L1(mm)	A1 slide	A2 slide	H(mm)	N	M	A1 slide	A2 slide
340	440	216.5	108.5	70	3	2	5.7	6.5
440	540	316.5	208.5	20	4	3	6.9	7.7
540	640	416.5	308.5	70	5	3	8.0	8.8
640	740	516.5	408.5	20	6	4	9.2	10.0
740	840	616.5	508.5	70	7	4	10.4	11.2
940	1040	816.5	708.5	70	9	5	11.6	12.4

Precision Single Axis Robot 100mm - 1680mm Linear Motion Module KK86 CNC Retail Industries
