100mm - 1680mm Linear Slide Table Heavy Duty Linear Module KK100 For CNC

Brand Name : SXEGL

Model Number : KK100

Certification : CE/FCC/EPA/ROSH/ISO

Place of Origin : China

MOQ : 1

Packaging Details : Carton

Delivery Time : Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms : Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability : All products have passed CE certification and comply with EU RoHS environmental standards

Price : $4-$999

Name : Linear Slide Table

Material : Bearing Steel

Length : 100-1680mm

Service : OEM Services

Structure : CNC Components

Core Components : Bearing, Motor

Application : Automatic Equipment High Speed Transfer Device

Contact Now

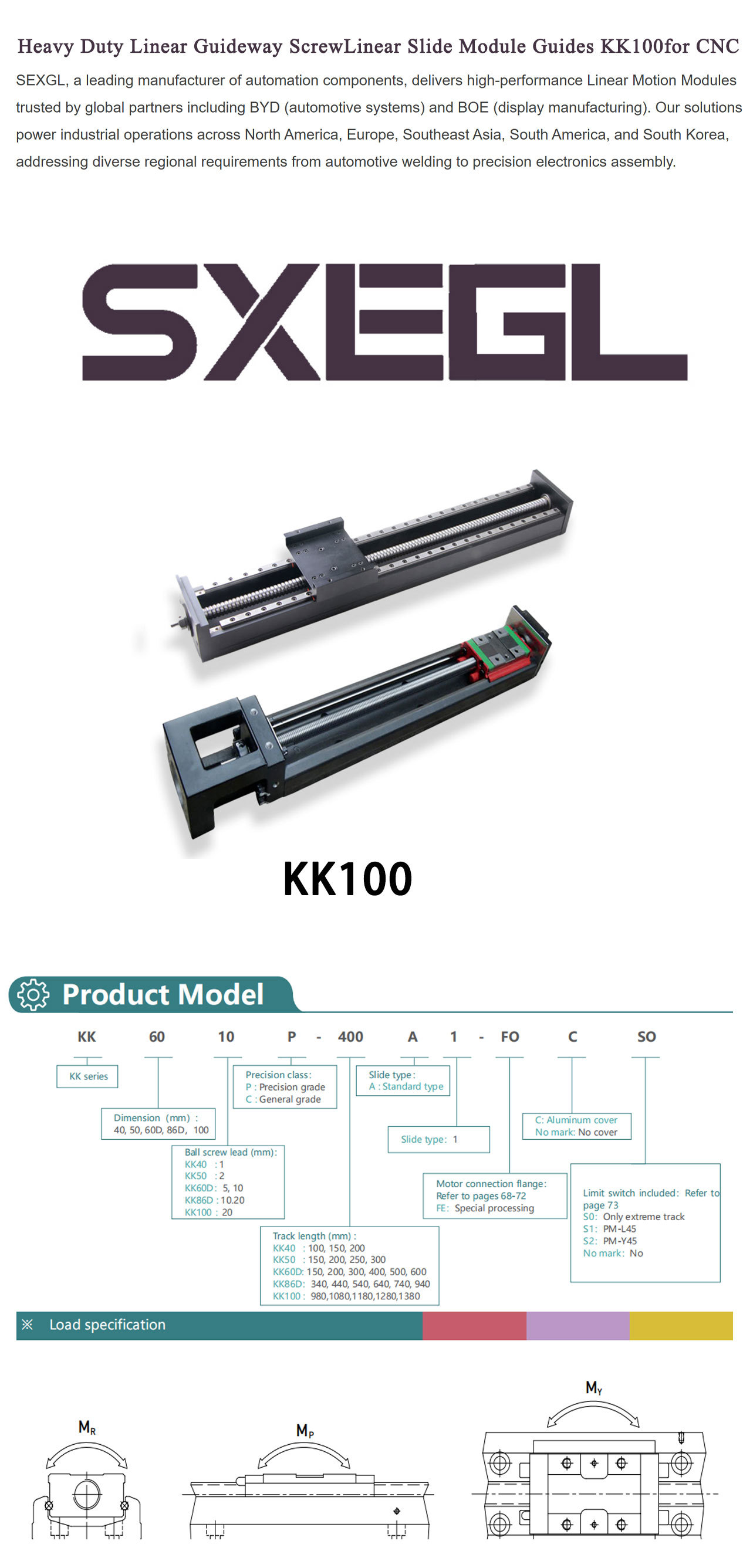

Heavy Duty Linear Guideway Screw Linear Slide Module Guides KK100 for CNC

SEXGL, a leading manufacturer of automation components, delivers high-performance Linear Motion Modules trusted by global partners including BYD (automotive systems) and BOE (display manufacturing). Our solutions power industrial operations across North America, Europe, Southeast Asia, South America, and South Korea, addressing diverse regional requirements from automotive welding to precision electronics assembly.A precision linear slide table module designed for industrial automation, featuring high rigidity, stable operation, and precise positioning. It enables rapid linear reciprocating motion and accurate positioning, widely used in applications such as CNC machine tools, robot arms, and automated inspection equipment.

  • Ultra-High Load Capacity: Designed with a monolithic steel frame combined with a reinforced rib structure, its rigidity is increased by 50% compared to standard modules, capable of withstanding vertical loads, lateral loads, and tipping moments.
    Precision-Stable Transmission: The ball screw type adopts a ground ball screw paired with high-rigidity guide rail sliders, ensuring high repeat positioning accuracy.
    Flexible Modular Integration: It retains standardized mounting interfaces, compatible with servo/stepper motors and various transmission accessories. It supports single-axis independent operation or multi-axis combination into complex structures such as gantry frames and cantilever beams, and adapts to multiple mounting methods (horizontal/vertical/inverted) for quick integration into existing automation systems.
    100mm - 1680mm Linear Slide Table Heavy Duty Linear Module KK100 For CNC

Model Ball screw Linear guideway
Screw
diameter
(mm)		 Lead
(mm)		 Basic
dynamic-
rated
load(N)		 Basic
static-
rated load
(N)		 Basic
dynamic-
rated load
(N)		 Basic
static-rated
load(N)		 Permissible static torque
Pitch
M,(N-m)		 Yaw
My(N-m)		   Roll
M(N-m)


SlideA |Slide s Slide A Slides Slide
A1		 Slide
A2		 Slide
S1		 Slide
S2		 Slide
A1		 Slide
A2		 Slide
S1		 Slide
S2		 Slide
A1		 Slide
A2		 Slide
S1		 Slide
S2
KK10020 Precision
General		 20  20  7046  12544  39200
63406
960  4763
- 960  4763

2205  4410     -
4782  9163

100mm - 1680mm Linear Slide Table Heavy Duty Linear Module KK100 For CNC

Model Track length Positioning
reproducibility		 Positioning accuracy Walking parallelism Maximum starting
torque(N-cm)
Precision General Precision General Precision General Precision General
KK100 980  ±0.005 ±0.01 0.035  - 0.025  - 17  12
1080
1180  ±0.005 ±0.01 0.040  - 0.03
20  12

100mm - 1680mm Linear Slide Table Heavy Duty Linear Module KK100 For CNC

Model Ball screw lead
(mm)		 Track length
L2(mm)		 Speed(mm/sec)
Precision grade General grade
KK100 20  980  1120  800
1080  980  800
1180  750  750
1280  630  630
1380  530  530


100mm - 1680mm Linear Slide Table Heavy Duty Linear Module KK100 For CNC

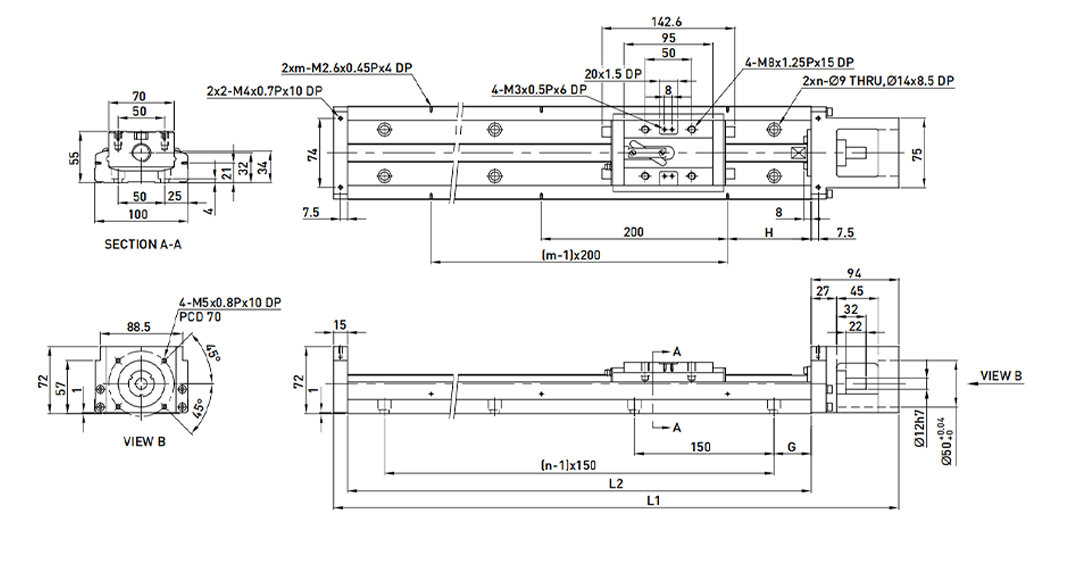

KK100 without cover

Unit:mm
Track length
L2(mm)		 Overall length
L1(mm)		 Max stroke(mm) G(mm) H(mm) N M Weight (kg)
A1 slide A2 slide A1 slide A2 slide
980  1089  828  700  40  90  7  5  18.6  20.3
1080  1189  928  800  15  40  8  6  20.3  22.0
1180  1289  1028  900  65  90  8  6  22.0  23.7
1280  1389  1128  1000  40  40  9  7  23.6  25.3
1380  1489  1228  1100  15  90  10  7  25.3  27.0

100mm - 1680mm Linear Slide Table Heavy Duty Linear Module KK100 For CNC100mm - 1680mm Linear Slide Table Heavy Duty Linear Module KK100 For CNC100mm - 1680mm Linear Slide Table Heavy Duty Linear Module KK100 For CNC
